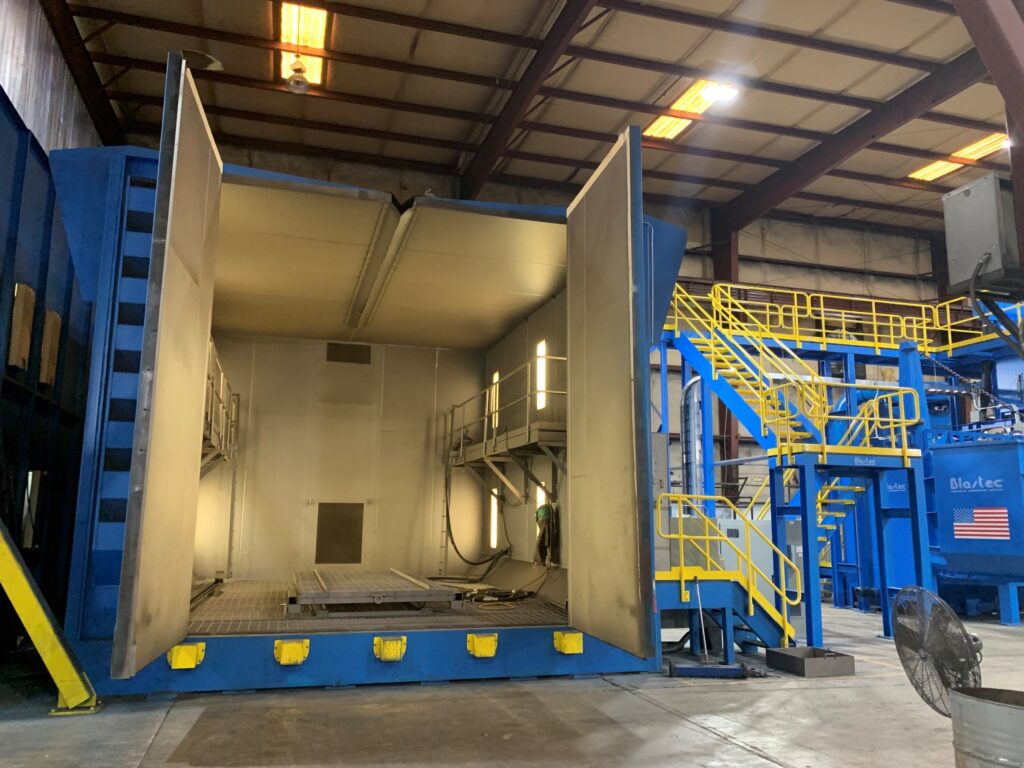

Manual Blast Booth

Our well illuminated “stand-alone” manned air blasting systems or integrated linear “touch up and blow-off booths” are custom engineered to meet the Customer’s needs. Conveyor systems range from fork truck loading, work car or overhead mono-rail. Full or partial recovery floors are available. Blastec’s standard recovery system components are an integral part of our cross draft blast booths.

Single or multiple outlet blast pots with dual trigger blow-off capabilities are standard.  Our operator safety gear includes blast suits, blast hoods with cape, and CO² monitoring systems with alarms along with door interlocks with emergency exit lighting.

Shot Blasting Equipment Rebuilds

BLASTEC® OFFERS A COMPLETE LINE of Blastec® designed components to upgrade your existing shot blast machine(s) to Blastec® quality standards. Components are manufactured to outlast and outperform the components they replace.

Blast Machine Rebuild Components:

  • Blastec® Original Direct Drive Shot Blast Wheels
  • Blastec® High Efficiency Air Wash Separators
  • Blastec® Scalping Drums/ Rotary Screens (AR Upgrade)
  • Blastec® Abrasive Transfer Conveyors and Drives
  • Blastec® Elevators and Drives
  • Blastec® Shot Gates / Abrasive Gates / Magnavalves
  • Blastec® Abrasive Replenishers
  • Blastec® Roller Conveyors
  • Blastec® Blow Off Sytems / Brushes
  • Blastec® Work Car / Material Transfer Systems
  • Blastec® Austenitic 11-14% Manganese & Steel Fabrications
  • Blastec® Electrical Control Panels, PLC’s, Automatic Program Controls
  • Blastec® Dust Collectors

These components can be applied to upgrade and rebuild all blast machines. An investment in BLASTEC’s replacement equipment, as an alternative to a new purchase, can improve performance results and production efficiencies for fraction of the cost.We appreciate the opportunity to serve you. For price and delivery information, phone: 1-800-241-3016 or email:

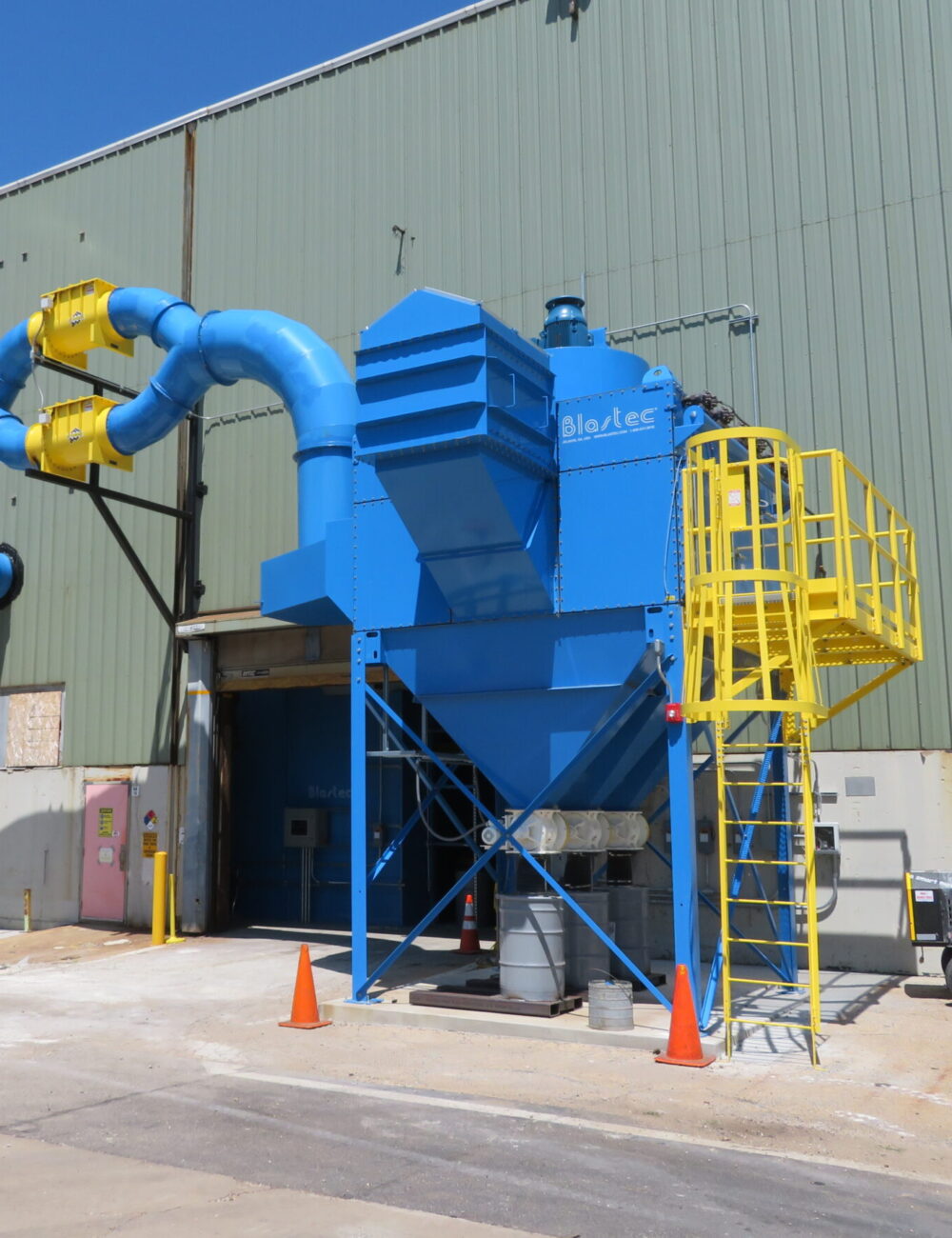

Blastec® Dust Collector Systems

Blastec cartridge dust collectors use perforated filter cartridges that contain a pleated, nonwoven filtering media, as opposed to woven bags used in bag houses. The pleated design allows for a greater total filtering surface area than in a conventional filter of the same diameter. The greater filtering area results in a reduced air to media ratio, pressure drop, and overall collector size.

Pulse Control for Cartridge Cleaning

Our cartridge collectors are continuous duty designs where the cartridges are cleaned by pulse-jet cleaning system.  Cartridge cleaning is controlled by a state-of-the-art control system with built-in, easy to use Programmable Controller, housed in a NEMA 4/4X enclosure.

Dust Collector Overview

  • Modular design for flexibility, each module accommodates up to 5,000 cfm
  • Heavy duty construction, 7g and 10g steel
  • Powder coat paint inside and outside for durable resistance to corrosion
  • Vertical cartridge design for efficient pulsing of dust and efficient cleaning
  • Easy access door with no knobs to lose or drop, no threads to bind, mechanically attached seal, heavy 10 gauge construction
  • Automatic timer control filter cleaning
  • Energy efficient premium fan motor
  • Complete set of high performance filter cartridges
  • Drum cover kit

Dust Collector Filter Cartridges

  • 325 Sq Ft of filter area (Media Area – 180 degrees F Max). Uniform pleat spacing with synthetic beads that hold the pleats of the filter cartridge wide open 99.99% on 0.5 µm and larger particles. Inner cone provides uniform dispersion of back-pulsed air and opens up more usable space for airflow in the dust collector.
  • Open pleat spacing improving cleaning efficiency with lower pressure drop (Delta P)
  • All cartridges can be replaced easily from outside the dust collector using a cam lock cartridge retainer design
  • Flame Retardant cartridge available
  • Reinforced cage support cartridges available for high temp heavy duty applications
  • Integrated Safety Monitoring Filter for indoor applications
  • Other high efficiency filter medias available

Additional Dust Collector Options

  • Explosion Vents
  • Sprinkler System Chemical
  • Suppression System
  • Spark Arrestor
  • Platforms
  • View Ports
  • Safety Monitoring Filter
  • Rotary Air Lock
  • Silencers

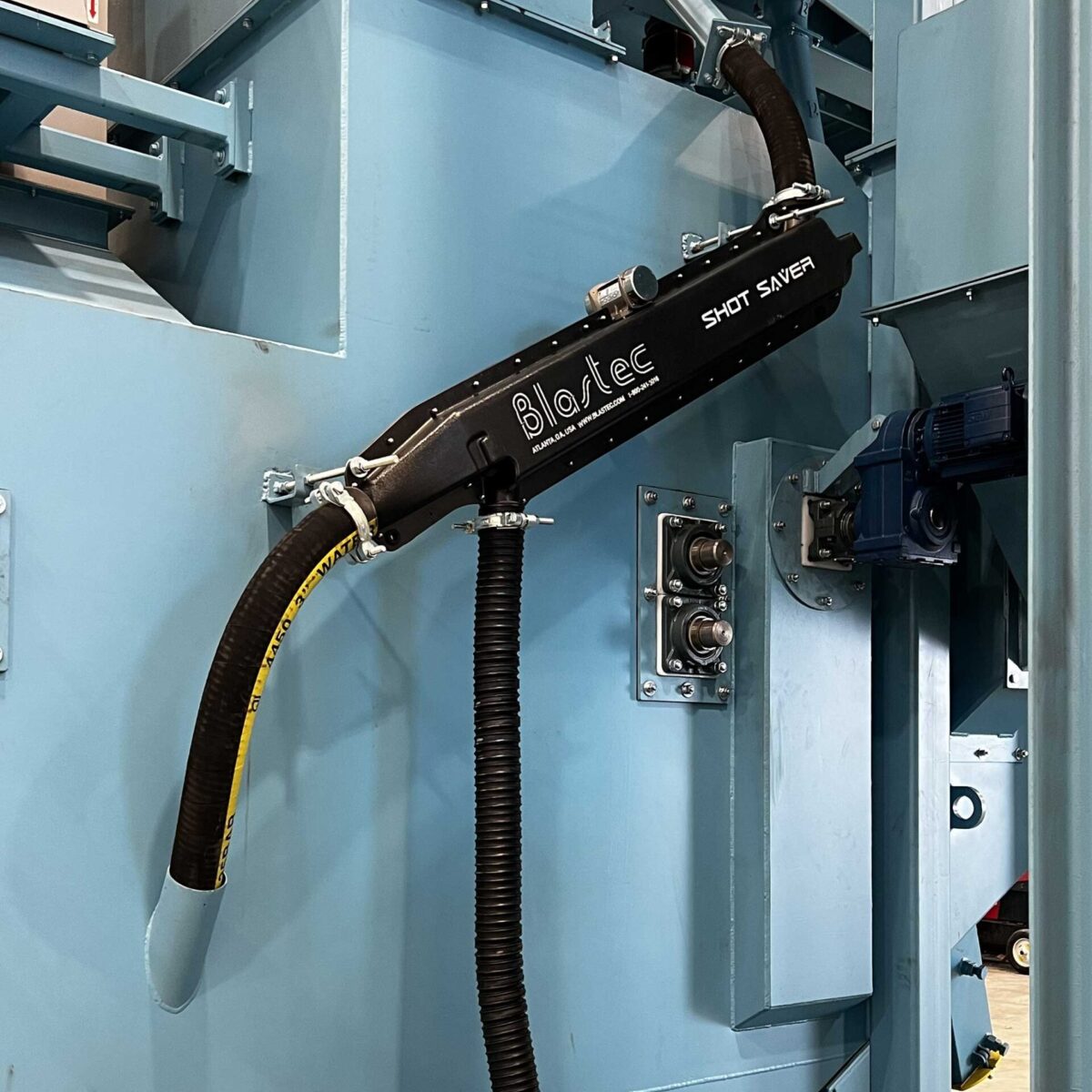

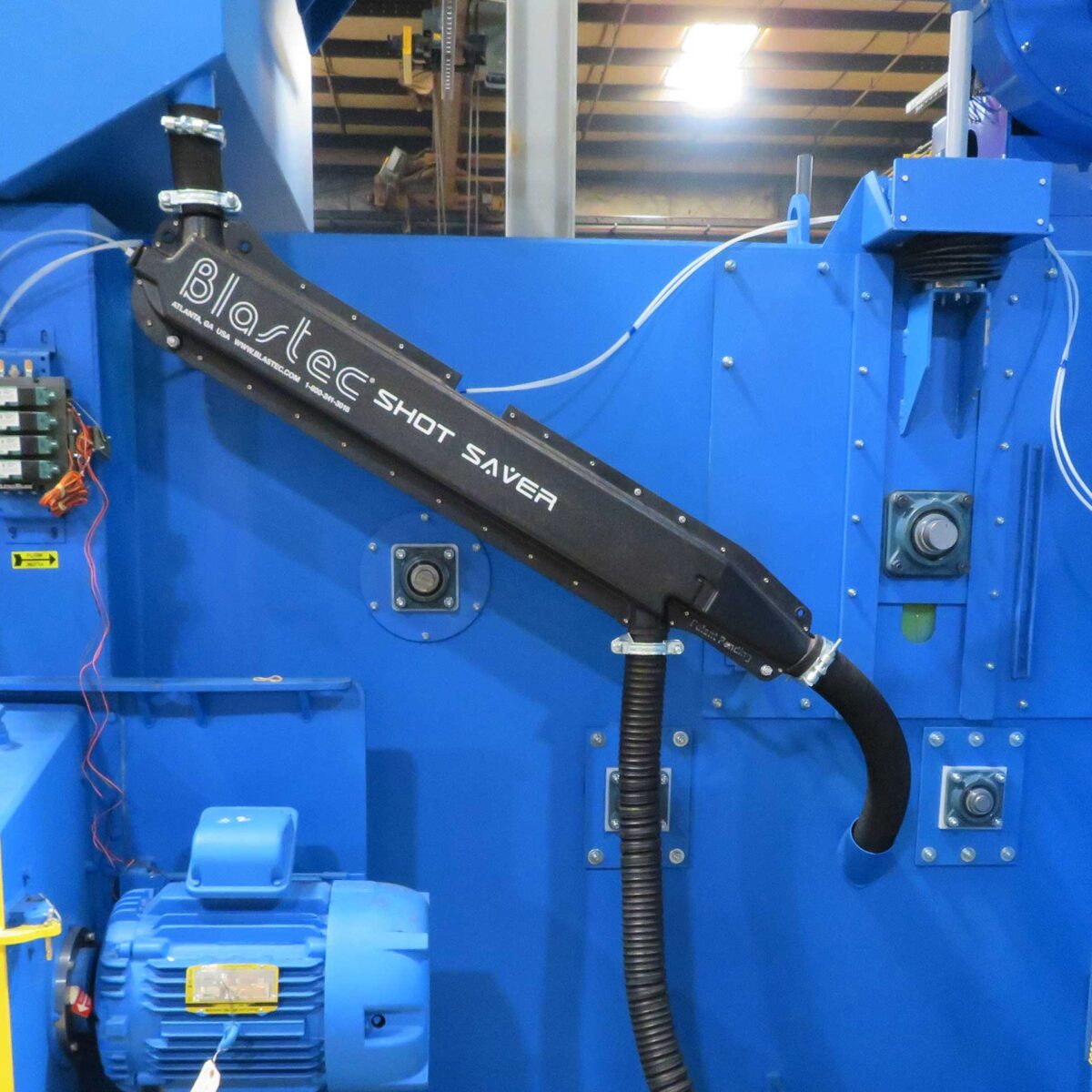

Blastec® Shot Saver®

(Patent Pending)

Reduce your abrasive media waste, improve the operational performance of your blast machine and lower your operating cost. Achieve these through the Shot Saver device.

The Shot Saver® is installed under the fine refuse hose coming from the Separator and separates the abrasive “fines” particles and routes any good abrasive directly back into the machine, minimizing suitable abrasive particles from being discharged with the fine refuse and discarded.

Aftermarket Parts

BLASTEC® provides superior replacement parts for all types of blast machines. Our OEM equipment parts are designed and manufactured to resist wear and minimize maintenance labor and cost. Since 1976, thousands of trials have been conducted by some of the largest and most demanding descaling applications in the steel industry, BLASTEC® high quality replacement parts are proven to perform under the harshest abrasive conditions.

Machine Parts & Supplies

  • Wear Resistant Cast Parts & Wear Liners
  • Bearings- Thrust/Flange/Hanger/Seals/Shafts
  • Tumble Blast Rubber Belts/Slats/Flights/Links & Pins
  • Polyurethane and Polycarbonate Finger Seals
  • Elevator Housing/Belts/Buckets
  • Heavy Duty Augers, A36 & AR Flighting Upgrade
  • Work Rollers/Manganese Cladded
  • Magnavalves & Totally Enclosed Shot Gates
  • 11-14% Hadfield Grade Manganese Steel & Welding Rod
  • AR 360/400/500 Steel Plate, Perf, Plate, Bar, & Pipe
  • Steel Plate Burned to Custom Specification
  • Heavy Duty Reinforced Flex Hose
  • Special Bolts/Nuts/Washers/Caps
  • Motors & Drives (High Efficiency Available)

Dust Collector Cartridges & Bags

  • A Complete Line of Dust Collector Bags and Cartridges
  • After Filters/Safety Monitoring Filters (SMF)
  • Fire Suppression Systems
  • Sprinkler/Explosion Vents/CO2
  • Timer Controls


  • Cast Shot & Grit

Our Parts are designed and Built to Last

For price and delivery information on the items listed:
Call 1-800-241-3016 or Contact Us

BLASTEC® OEM parts and components design are developed to better serve and minimize the maintenance demands that all blast equipment requires. Routine and proper maintenance of your blast equipment will ensure maximum cleaning performance and minimize overall quality and/or repair costs.

We also offer replacement parts and components for upgrade and/or modernization of your existing blast machines, regardless of manufacturer.
